Custom Magnetic Track Rails—Curved, Angled & Made-to-Order
Build lighting that follows your architecture—not the other way around. Lumotrax designs and manufactures custom magnetic track rails in straight, curved, and complex shapes (L/U/S/Z), tailored to exact dimensions, finishes, and mounting methods.
Why Go Custom?
Standard rails fit simple runs. Complex spaces—arched corridors, feature ceilings, brand pathways—need custom magnetic track rails that bend, span, and connect without visual breaks. Lumotrax engineers deliver precise radii, tight tolerances, and seamless joins for a clean, continuous look.
- Exact-to-drawing fabrication (DXF/DWG accepted)
- Smooth curves with consistent radius (R≥200 mm typical)
- Invisible joins; consistent gap control along the run
- Finish-matched accessories & connectors
- ast tooling for prototypes and rollouts
Customization Options for Your Track System

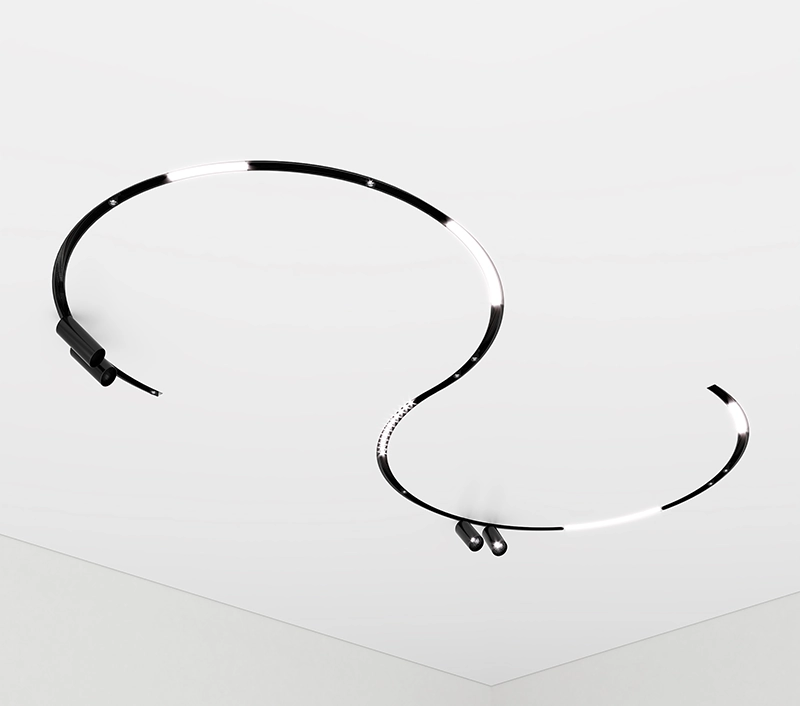

Track Shape & Configuration

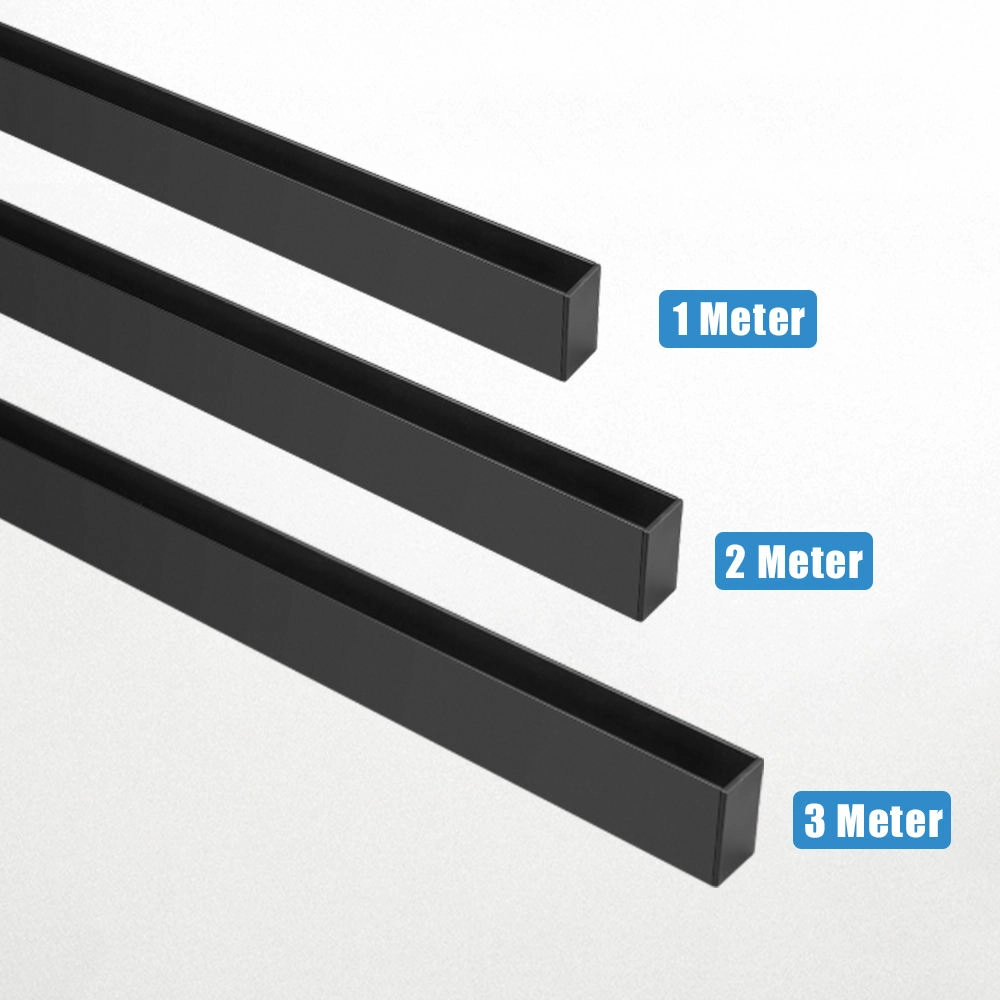

Dimensions & Tolerances

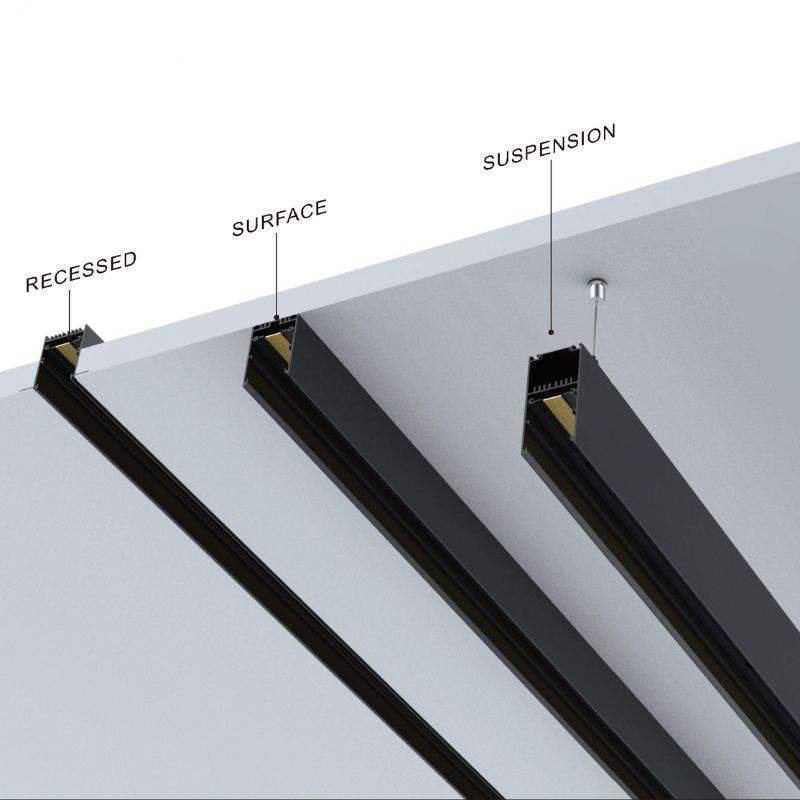

Mounting Methods

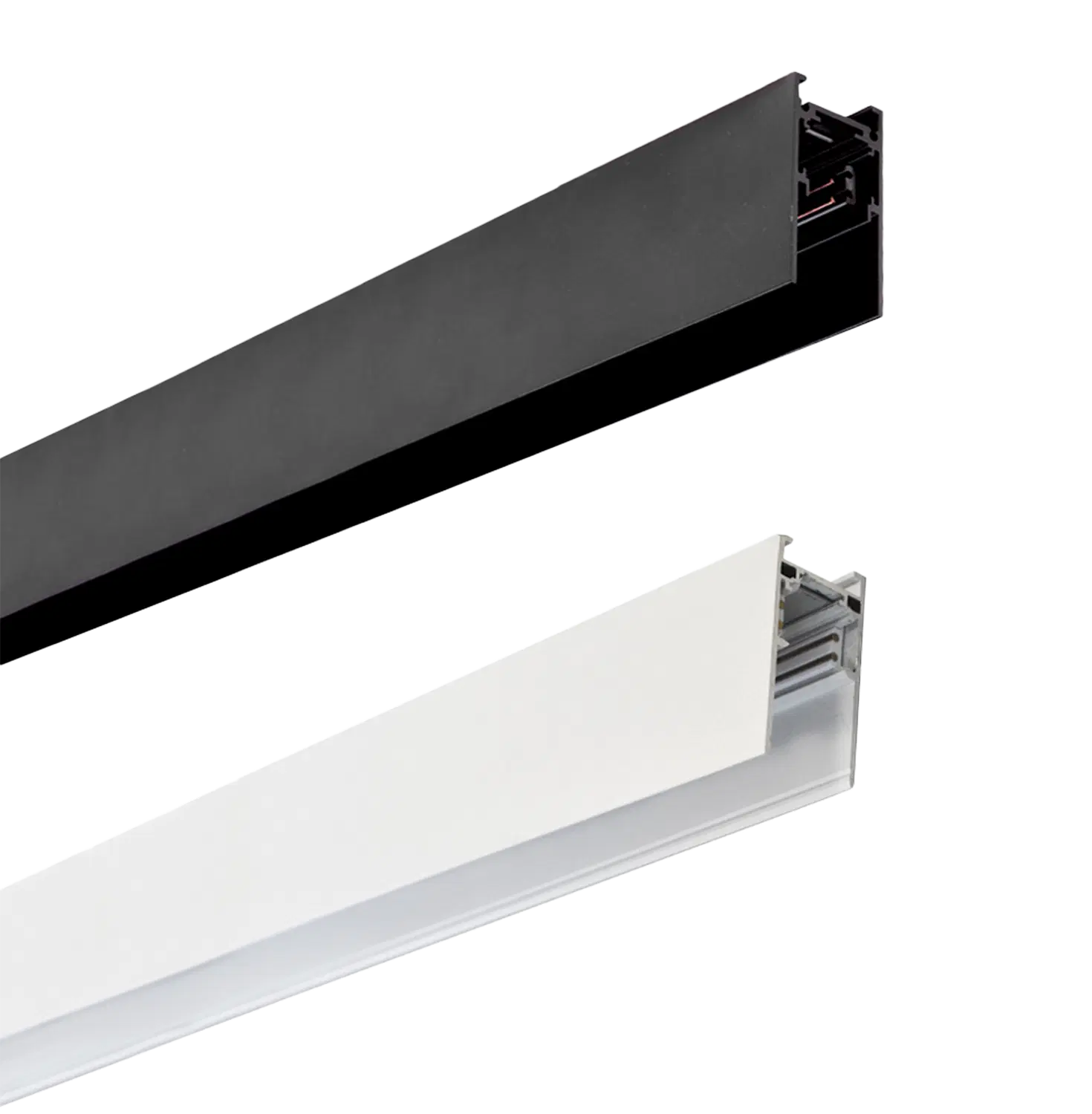

Finishes & Colors

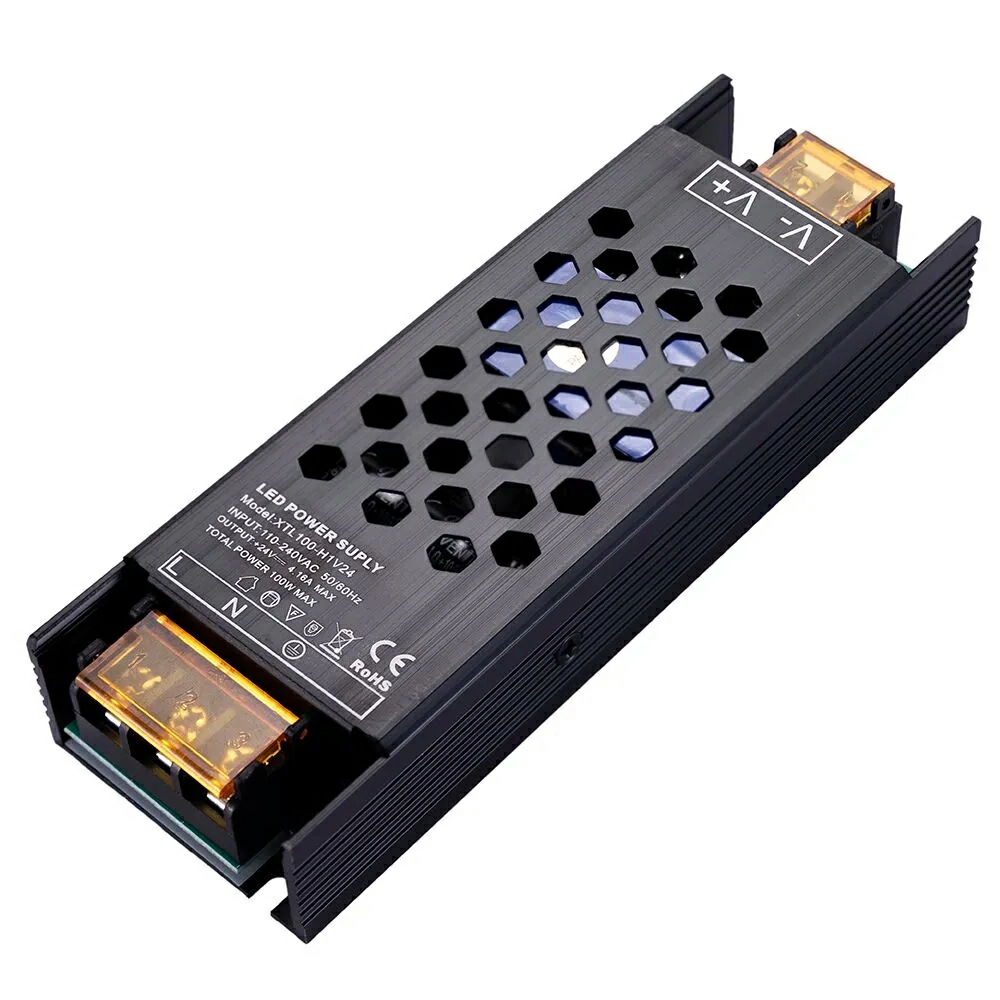

Electrical & Control (48V Platform)

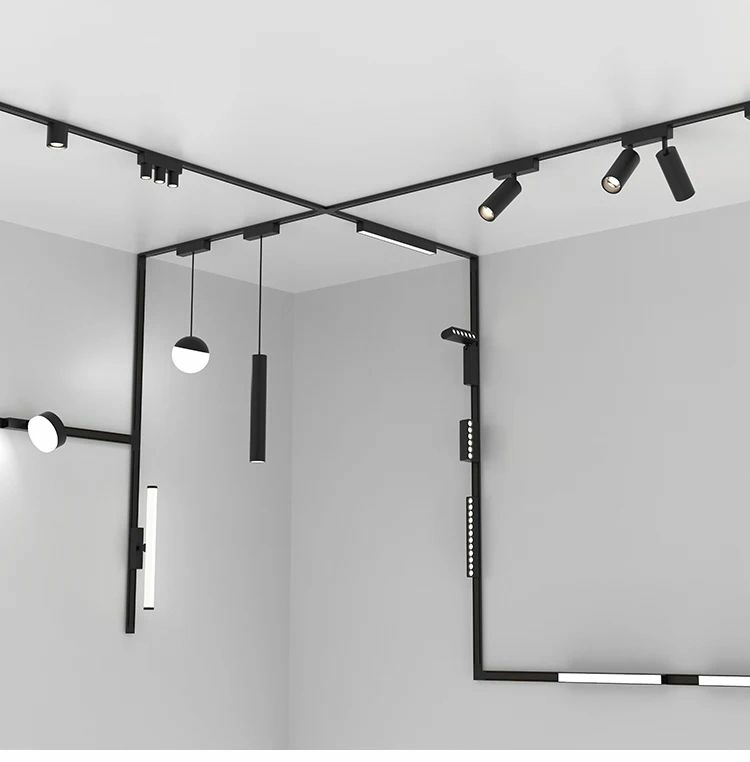

Compatibility
How to Start Your Custom Order
1.What to Send
- Floor/ceiling plan with track route (PDF/DWG/DXF)
- Mounting type & ceiling detail (gypsum, concrete, open ceiling)
- Radii / angles / heights / drop lengths
- Finish & quantity, target ship date
2.What You Receive
- Marked drawings & shop drawings for approval
- BOM with connectors, feeds, accessories
- Photometric proposal (on request)
- Packing list & installation guide
The Customization Process
Lead time typically 10–15 working days after approval; samples/prototypes 5–7 days depending on complexity.
Technical Specifications
| Parameter | Typical | Notes |
|---|---|---|
| System Voltage | 48 V DC | 0–10 V / DALI / smart control optional |
| Cross-Section | 35×20 mm | Custom profiles on request |
| Minimum Arc Radius | R≥200 mm | Tighter radii by evaluation |
| Length Per Segment | Up to 2000 mm | Longer via joiners |
| Materials | Aluminum alloy 6063-T5 | Powder coat / anodized |
| Finish | Matte black / white / RAL | Custom finishes supported |
| Mounting | Surface / recessed / suspended | Kits & hardware included |
| Tolerance | End-cut ±0.5 mm | Hole pattern per drawing |
| Warranty | 3–5 years | Model dependent |
Applications
Retail Stores
Luxury Residences
Corporate Offices
Hotels & Restaurants
Galleries & Museums
Event & Exhibition Spaces
Custom vs. Standard Track Rails
| Features | Standard Track Rails | Custom Track Rails |
|---|---|---|
| Shape Options | Straight track only, common L / T / X connectors | Fully customized curved, circular, or irregular shapes |
| Configuration Flexibility | Limited to modular pieces, requires extra connectors | Tailored to your design drawings, seamless integration |
| Lead Time | In stock / fast shipping | 7–15 days production depending on complexity |
| Cost | More cost-effective, ideal for bulk projects | Higher unit cost but saves labor and installation adjustments |
| Finishes & Colors | Standard black / white | RAL custom colors available to match interior design |
| Mounting Methods | Surface-mounted, recessed, suspended | Supports unique architectural requirements and irregular mounting |
| Applications | Offices, retail stores, hotels (basic lighting) | Luxury residences, museums, galleries, exhibitions, flagship stores |
| Compatibility | Works with standard magnetic light fixtures | Fully compatible, with extended flexibility for complex layouts |
| Best Choice | Budget-sensitive, standardized projects | High-end, design-driven spaces requiring differentiation |
Custom Track Rails – FAQ
Flexible MOQs by project; small pilot runs welcome.
10–15 working daysafter drawing approval; samples 5–7 days.
Yes—send radius/diameter; we’ll confirm manufacturability and provide joiners.
Keywords: curved magnetic track rails
Yes—shop drawings, wiring points, suspension drops, and a step-by-step installation guide.
Provide RAL/Pantone; we’ll powder-coat and keep color consistency across batches.
Start Your Custom Rail Today
Upload drawings or describe your space—we’ll return a layout, BOM, and quote.
Privacy note: We keep drawings confidential and use them only for quotation and engineering.
